AIR CARE SYSTEM & SOLUTION INDIA PVT. LTD.
Industrial Cooler
Products

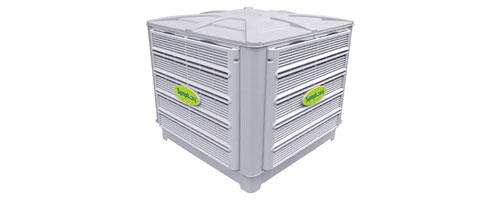

∴ PAC 18
We Air Care System & Solution India Pvt. Ltd. are leading manufacturer, supplier and solution provider of Industrial Cooler in Dubai | Air Care System & Solution India Pvt. Ltd. Pune.
PAC 18 is a general all-purpose, single-speed air cooler with its own pump & motor and without any controls. Its optimized motor and fan are designed to deliverlow noise and a powerful airflow. The high-quality air pre-filter protects its high-performance cooling pad.
PAC 18 Features
- High performance cooling pads
- Optimized motor and fan to deliver low noise and powerful airflow
- Easy installation and maintenance
- High quality air pre-filter to protect the cooling pad
- Single speed
Specifications
| Product Dimensions H/W/D (mm) | 1000/1100/1100 |
| Duct Opening A/B/F | 670/670/218 |
| Drain Location C/E | 152/158 |
| Duct Height G | 12 |
| Water Service M/N | 230/158 |
| Fan Wheel Dimension (Dia) | 620 |
| Media Dimension K/L/Width | 700/100/770 |
| Filter Dimension (08 Nos) Height/Width | 686/364 |

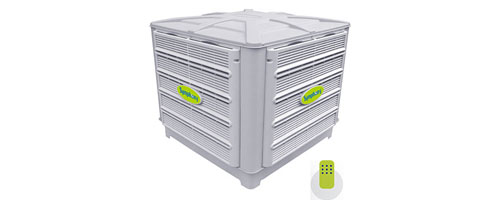

∴ PAC 18i
PAC 18i offers nine adjustable fan speeds and a wired remote control for easier use. The auto-clean feature ensures that the tank is kept clean at all times, thereby preventing frequent clogging of pads. Automatic solenoid valves and a running status LED display are other user-friendly features of this model.
PAC 18i Features
- High performance cooling pads
- Wired remote controller with running status LED display
- 9 adjustable fan speeds
- Optimized motor and fan to deliver low noise and powerful airflow
- Auto Clean available to keep tank and water clean all the time and thereby also prevent frequent clogging of pads
- Automatic solenoid values
- Easy installation and maintenance
- High quality air pre-filter to protect the cooling pad
Specifications
| Product Dimensions H/W/D (mm) | 1000/1100/1100 |
| Duct Opening A/B/F | 670/670/218 |
| Drain Location C/E | 152/158 |
| Duct Height G | 12 |
| Water Service M/N | 230/158 |
| Fan Wheel Dimension (Dia) | 620 |
| Media Dimension K/L/Width | 700/100/770 |
| Filter Dimension (08 Nos) Height/Width | 686/364 |
∴ PAC 18i+
Powered by the superior i-Pure Technology,PAC 18i+ is the latest and most advanced offering in high-capacity evaporative coolers from Symphony. The model comprises of a grouped and centralized control mechanism of a maximum nine groups of 20 units each. It offers better temperature and humidity control modes with 16 adjustable fan speeds. Further, features such as a 24-hour timer, adjustable draining intervals and self-diagnosis and error display add to its user-friendliness.
PAC 18i+ Features
- High performance cooling pads with auto clean function for long life of the pads
- Grouped and centralized control with maximum 9 groups of 20 units
- Wireless remote control
- Temperature control and Humidity control mode
- 24 hours ON/OFF timer
- 16 adjustable fan speeds
- Exhaust mode option to remove indoor air
- 1-99 hours adjustable draining intervals
- Self-diagnosis and error code display
- Plumbing accessories - flexible pipe with end connectors, ball valve and drain adapter
- Installation accessories - duct connector and shock absorbers
- Automatic solenoid valves
- PM 2.5 wash cycle
Specifications
| Product Dimensions H/W/D (mm) | 950/1190/1100 |
| Duct Height G | 30 |
| Water Service M/N | 354/250 |
| Fan Wheel Dimension (Dia) | 620 |
| Media Dimension K/L/Width | 700/100/770 |
| Filter Dimension (08 Nos) Height/Width | 700/364 |
| Duct Opening A/B/F | 670/670/180 |
| Drain Location E/F | 464/200 |

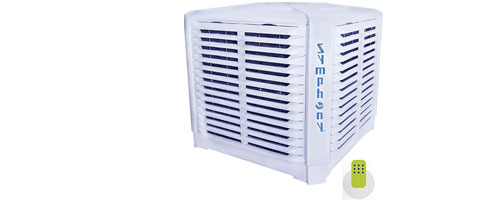

∴ PAC 32i
The PAC 32i includes a wired remote control with running status display. Its optimized motor and fan deliver a powerful airflow with low noise. Features such as high-quality air pre-filter, auto-clean mechanisms and automatic solenoid valves add to its user-friendliness and easy maintenance.
PAC 32i Features
- High performance cooling pads
- Wired remote controller with running status LED display
- Optimized motor and fan to deliver low noise and powerful airflow
- Auto Clean available to keep tank and water clean all the time and thereby
- also prevent frequent clogging of pads
- Automatic solenoid valves
- Easy installation and maintenance High quality air pre-filter to protect the cooling pad
Specifications
| Product Dimensions H/W/D (mm) | 1125/1225/1225 |
| Duct Opening A/B/F | 777/777/128 |
| Drain Location C/E | 128/128 |
| Duct Height G | 40 |
| Water Service M/N | 250/146 |
| Fan Wheel Dimension (Dia) | 710 |
| Media Dimension K/L/Width | 838/120/860 |
| Filter Dimension (08 Nos) Height/Width | 833/402 |

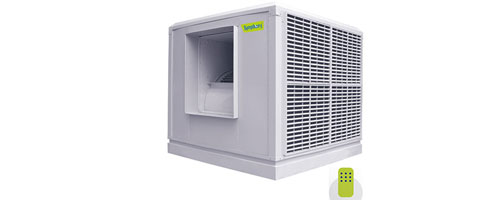

∴ SPS 45
The durability of SPS series of high-capacity evaporative coolers is extended as a result of its stainless-steel chassis and aluminium pillars. Features such as high-performance cooling pads, auto clean option and high-quality air pre-filter add to its user-friendliness and easy maintenances.
SPS 45 Features
- Stainless steel chassis to extend the service life
- Aluminum pillars
- High air pressure and long distance air delivery
- High performance cooling pads
- Auto Clean available to keep tank and water clean all the time and thereby also prevent frequent clogging of pads
- High quality air pre-filter to protect the cooling pad
- Easy to operate and maintain
Specifications
| Product Dimensions H/W/D (mm) | 1440/1770/1770 |
| Water Service M/N | 385/126 |
| Media Dimension K/L/Width | 1030/100/1480 |
| Filter Dimension (06 Nos) Height/Width | 1020/590 |
| Filter Dimension (03 Nos) Height/Width | 1020/290 |
| Cabinet Location X/Y/Z | 1415/1160/516 |
| Blower Wheel (Dia) | 635 |
| Blower Pulley | 355 |
| Drain Location E/F | 131/245 |
| Duct Opening A/B/C/G | 700/782/495/515 |

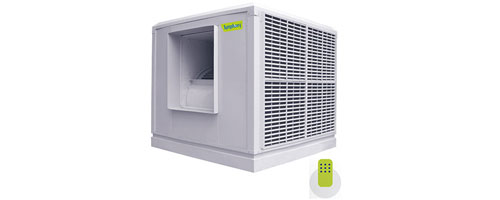

∴ SPS 75
The durability of SPS series of high-capacity evaporative coolers is extended as a result of its stainless-steel chassis and aluminium pillars. Features such as high-performance cooling pads, auto clean option and high-quality air pre-filter add to its user-friendliness and easy maintenances.
SPS 75 Features
- Stainless steel chassis to extend the service life
- Aluminum pillars
- High air pressure and long distance air delivery
- High performance cooling pads
- Auto Clean available to keep tank and water clean all the time and thereby also prevent frequent clogging of pads
- High quality air pre-filter to protect the cooling pad
- Easy to operate and maintain
Specifications
| Product Dimensions H/W/D (mm) | 1700/2055/1970 |
| Water Service M/N | 650/126 |
| Media Dimension K/L/Width | 1355/100/1680 |
| Filter Dimension (06 Nos) Height/Width | 1336/590 |
| Filter Dimension (03 Nos) Height/Width | 1336/490 |
| Cabinet Location X/Y/Z | 1485/1410/20 |
| Blower Wheel (Dia) | 760 |
| Blower Pulley | 450 |
| Duct Opening A/B/C/G | 834/926/523/715 |
| Drain Location E/O/F | 131/510/140 |
